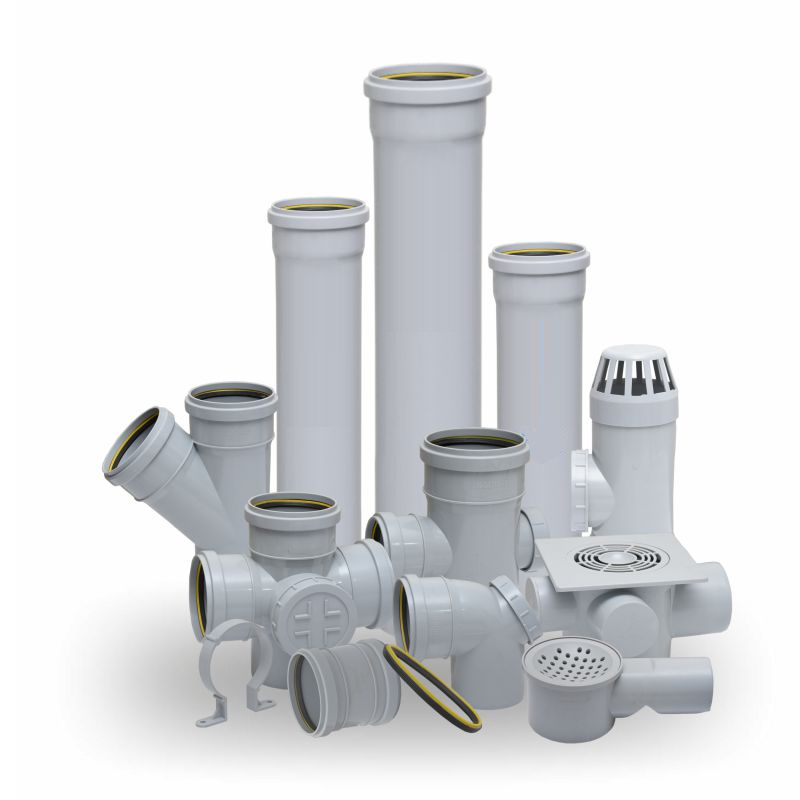

SWR Pipes & Fittings

Features and Benefits:

  • Lighter than conventional C.I Pipes but strong.
  • Compatible with other drainage products.
  • Easy to install with low assembly force.
  • Leak-proof joints & Smooth bore.
  • Long term sealing performance.
  • World class seals stronger than locally available seals.
  • Long life.
  • Corrosion and abrasion resistance.
  • Smooth Interior – free of incrustations.
  • Tough and reliable.
  • Cost effective.

Applications

  • Inside & outside building drainage systems including ventilation.
  • Rain water discharge & harvesting for residential, buildings/complexes & commercial.
  • Industrial buildings & public utilities.
  • Piping for soil discharge.
  • Non pressure industrial drainage application (based on chemical compatibility)
  • Rain water transportation.
  • Domestic & commercial drainage.
  • Replacement of cast iron piping.
  • Laboratory drainage (based on chemical compatibility)

Technical Specifications:

Pipe
Size (mm)

Nominal Outside

Dia. (mm)

Mean Outside

Dia. (mm)
Wall Thickness (mm)
Type “A”
Type “B”
Min.
Max.
Min.
Max.
Min.
Max.
40
40.0
40.00
40.30
1.80
2.20
3.20
3.80
50
50.0
50.00
50.30
1.80
2.20
3.20
3.80
63
63.0
63.00
63.30
1.80
2.20
3.20
3.80
75
75.0
75.00
75.30
1.80
2.20
3.20
3.80
90
90.0
90.00
90.30
1.90
2.30
3.20
3.80
110
110.0
110.00
110.40
2.20
2.70
3.20
3.80
160
160.0
160.00
160.50
3.20
3.80
4.00
4.60
