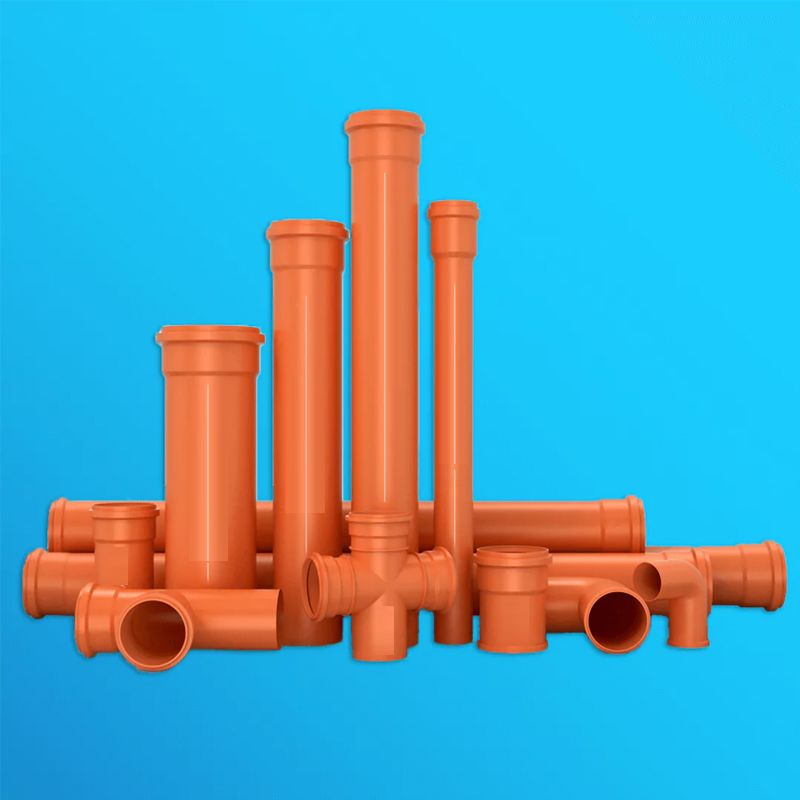

PVC-UDS Pipes & Fittings

Features and Benefits:

  • Light in weight and strong
  • Uniform wall thickness.
  • Inner smooth surface, no blockages
  • Available in solvent weld and EPDM ring fit joints
  • Maintenance free, Cost Saving
  • 100% water tight and free from underground ill effects
  • Easy and quick to install, Hygienic and Safe
  • Durable, Minimizes excavation cost, Economical
  • Corrosion Resistant and Maximum Flow Rate
  • No Electrical tools required
  • Excellent Earth Load bearing strength

Applications

  • Underground Drainage System is ideal to use in Single House application to Multi Floors Buildings, Hotels, Hospitals, Shopping Malls, Academic Institutes up to the main lines.

Technical Specifications:

Pipe
Size (mm)

Nominal Outside

Dia. (mm)

Mean Outside

Dia. (mm)
Wall Thickness (mm)
Type “A”
Type “B”
Min.
Max.
Min.
Max.
Min.
Max.
40
40.0
40.00
40.30
1.80
2.20
3.20
3.80
50
50.0
50.00
50.30
1.80
2.20
3.20
3.80
63
63.0
63.00
63.30
1.80
2.20
3.20
3.80
75
75.0
75.00
75.30
1.80
2.20
3.20
3.80
90
90.0
90.00
90.30
1.90
2.30
3.20
3.80
110
110.0
110.00
110.40
2.20
2.70
3.20
3.80
160
160.0
160.00
160.50
3.20
3.80
4.00
4.60
