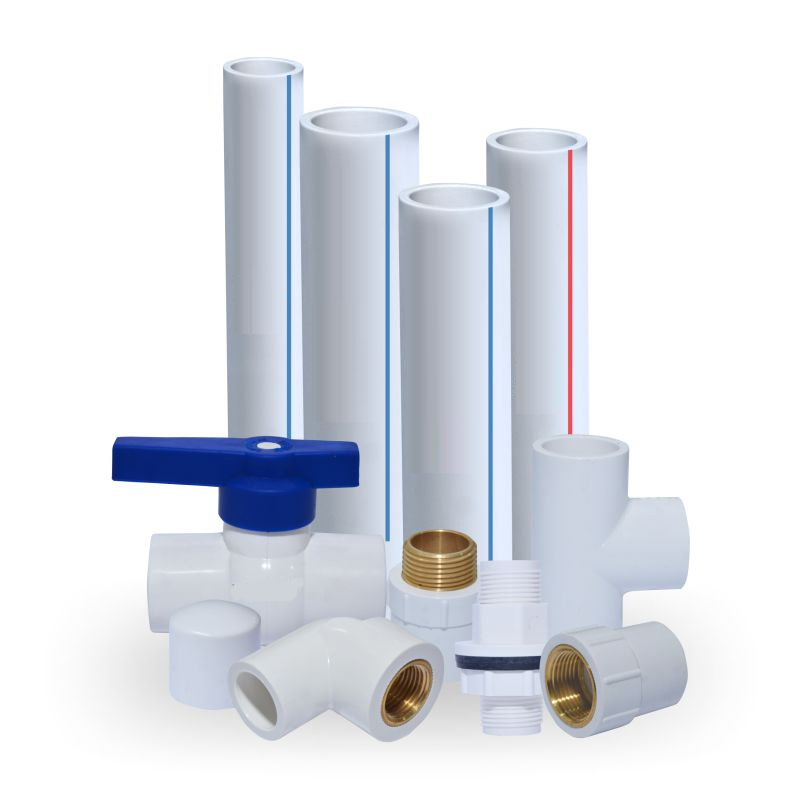

Dimensions & Working
|
Pressure for Pipes (Solvent Weld) at 23℃
|
||||
|---|---|---|---|---|---|
|
Nominal Bore
|
Outside Diameter
|
Schedule 40
|
Schedule 80
|
||
|
Wall Thickness
|
Working Pressure
|
Wall Thickness
|
Working Pressure
|
||
|
(Inch)
|
(mm)
|
(mm)
|
(kg/cm )
|
(mm)
|
(kg/cm )
|
|
1/2
|
21.34 (+/- 0.10)
|
2.77 + 0.51
|
42.20
|
3.73 + 0.51
|
59.75
|
|
3/4
|
26.67 (+/- 0.10)
|
2.87 + 0.51
|
33.75
|
3.91 + 0.51
|
48.50
|
|
1
|
33.40 (+/- 0.13)
|
3.38 + 0.51
|
31.60
|
4.55 + 0.53
|
44.25
|
|
1 1/4
|
42.16 (+/- 0.13)
|
3.56 + 0.51
|
26.00
|
4.85 + 0.58
|
36.60
|
|
1 1/2
|
48.26 (+/- 0.15)
|
3.68 + 0.51
|
23.25
|
5.08 + 0.61
|
33.00
|
|
2
|
60.32 (+/- 0.15)
|
3.91 + 0.51
|
19.65
|
5.54 + 0.66
|
28.10
|
|
2 1/2
|
73.02 (+/- 0.18)
|
5.16 + 0.61
|
21.10
|
7.01 + 0.84
|
29.55
|
|
3
|
88.90 (+/- 0.20)
|
5.49 + 0.66
|
18.25
|
7.62 + 0.91
|
26.00
|
|
4
|
114.30 (+/- 0.23)
|
6.02 + 0.71
|
15.50
|
8.56 + 1.02
|
22.50
|
|
6
|
168.28 (+/- 0.28)
|
7.11 + 0.86
|
12.60
|
10.97 + 1.32
|
19.65
|
|
Pressure for Fittings (Solvent Weld) at 23 C
|
||
|---|---|---|
|
Nominal Bore
|
Schedule 40
|
Schedule 80
|
|
Working Pressure
|
Working Pressure
|
|
|
(Inch)
|
(kg/cm )
|
(kg/cm )
|
|
1/2
|
25.30
|
35.85
|
|
3/4
|
20.25
|
29.10
|
|
1
|
18.95
|
26.55
|
|
1 1/4
|
15.60
|
21.95
|
|
1 1/2
|
13.95
|
19.80
|
|
2
|
11.75
|
16.85
|
|
2 1/2
|
–
|
17.70
|
|
3
|
–
|
15.60
|
|
4
|
–
|
13.50
|
